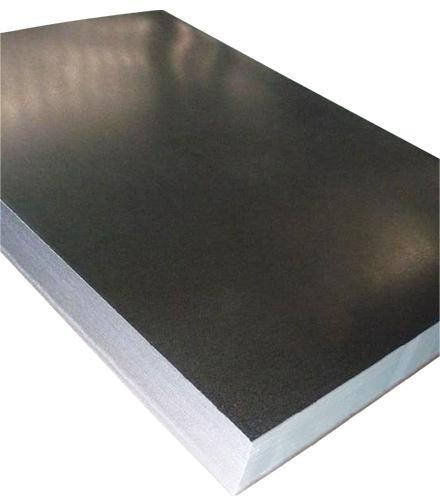

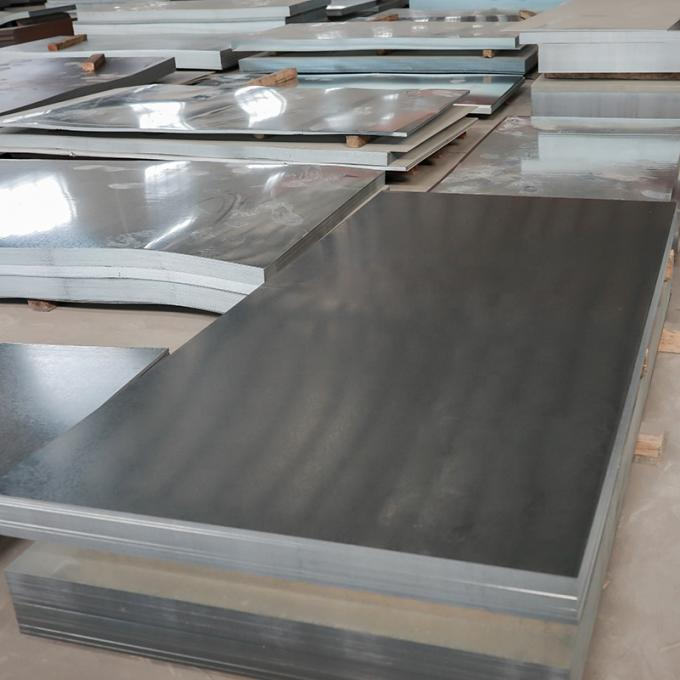

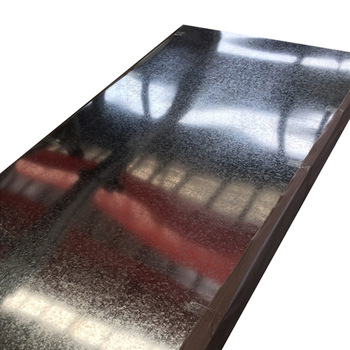

Factory Supplier Zinc40-275 Coated Steel Hot Dip Galvanized Steel Sheet Plate Sgcc

Standard

ASTM,DIN,JIS,BS,GB/T,GB,EN

Material

Dx51D, Dx52D, Dx53D, DX54D, S220GD, S250GD, S280GD, S350GD, S350GD, S550GD; SGCC, SGHC, SGCH, SGH340, SGH400, SGH440, SGH490, SGH540, SGCD1, SGCD2, SGCD3, SGC340, SGC340 , SGC490, SGC570; SQ CR22 (230), SQ CR22 (255), SQ CR40 (275), SQ CR50 (340), SQ

CR80(550), CQ, FS, DDS, EDDS, SQ CR33 (230), SQ CR37 (255), SQCR40 (275), SQ CR50 (340), SQ CR80 (550); or Customer’s Requirement

Application

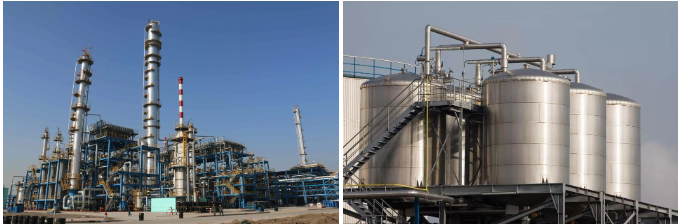

galvanized steel coil is one of the most widely used products, used extensively in the building sector, automotive, agricultural and other areas where the steel needs to be protected from corrosion.

Thick

0.12-4.0 mm / BWG / AWG or as your request

Width

20-1500 mm or as your request, Normal width is 914/1000/1219/1250/1500 mm

Zinc Coating

30~600 G/M2

Surface Structure

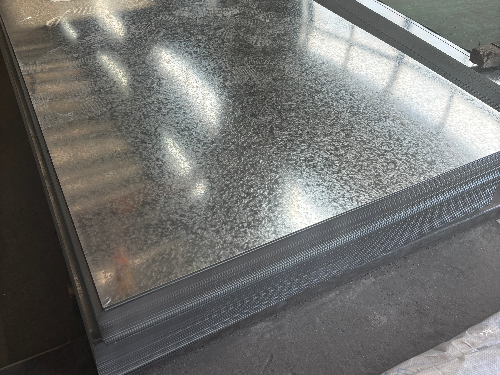

Regular spangle,Minimum spangle, Zero spangle, Big spangle

Surface Treatment

Passivation(C), Oiling(O), Lacquer sealing(L), Phosphating(P), Untreated(U) , Chromated/Non-Chromated, Oiled/Non-oiled, Skin pass

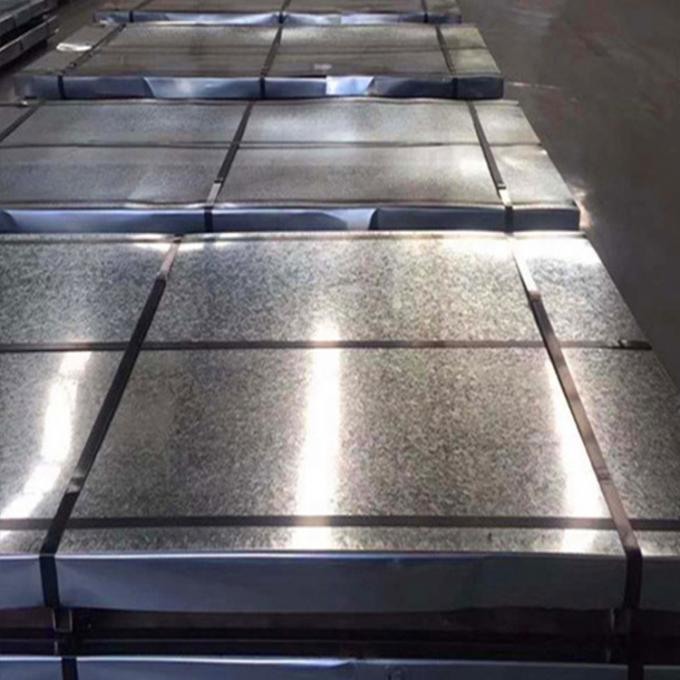

Package

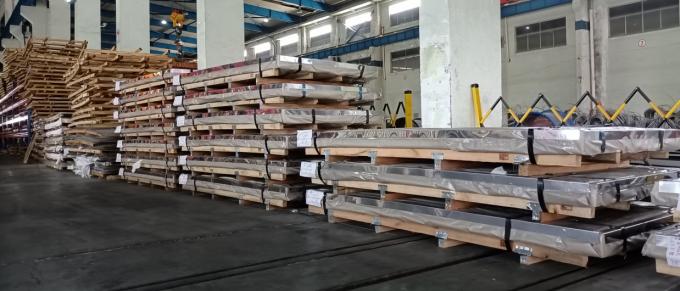

Water proof paper is inner packing,galvanized steel or coated steel sheet is outer packing , side guard plate,then wrapped by seven steel belt.or according to customer's requirement

Description

Galvanized steel coil is mild steel with a coating of zinc. The zinc protects the steel by providing cathodic protection to the exposed steel, so should the surface be damaged the zinc will corrode in preference to the steel.

GRADE

C

Si

Mn

P

S

Ti

SGCC/DX51D+Z

≤0.10

≤0.50

≤0.60

≤0.10

≤0.030

≤0.020

DX52D+Z

≤0.10

≤0.50

≤0.60

≤0.10

≤0.030

≤0.020

SGCD/DX53D+Z

≤0.10

≤0.30

≤0.50

≤0.05

≤0.030

≤0.020

SGCE/DX54D+Z

≤0.10

≤0.30

≤0.30

≤0.03

≤0.020

≤0.020

DX56D+Z

≤0.10

≤0.30

≤0.30

≤0.03

≤0.020

≤0.020

Structural

≤0.20

≤0.60

≤1.70

≤0.10

≤0.045
